SAE100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-base hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment.

It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment. The cover is made from high quality synthetic rubber, which is resistant to weather, ozone, corrosion, abrasion, aging, sunlight and cut. The hose has longer service life as a result. We can also supply hydraulic hose fitting  and hydraulic hose crimping machine. Inquiry us now!



Recommended For:
High pressure hydraulic lines. Exceeds the performance requirements of SAE100 R2 AT, SAE 100R2 Type S and EN853 2SN.
Application Fields:
For high pressure hydraulic systems in industry and agriculture.

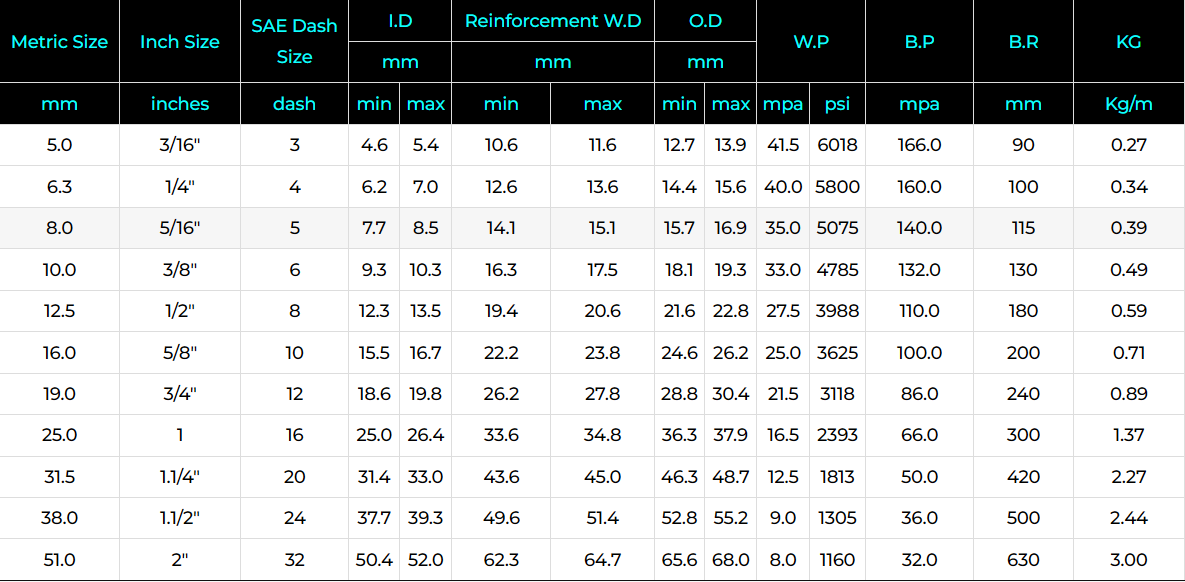

SAE100 R2 Structure:

Tube: Black and oil resistant synthetic rubber.
Reinforcement:
Two layers of high-tensile steel wires braid.
Cover: Black, oil, abrasion and weather resistant thin synthetic rubber.
Temperature Range:
-40℉ to +250℉ (-40℃ to +121℃)

hydraulic-hose

Raw Material:

Importe LG NBR rubber from South Korea and BELKTA steel wire with high tensile strength 2750Mpa from Belgium.

Good quality materials provide our hydraulic hose steady performance, good decentrality and excellent oil resistance.

hydraulic-hose-raw-material

Factory Workshop:

Our factory introduce advanced technology and equipment to make the best quality hydraulic hose.

Our bunching machine is SEJIN MACHINE from Korea.

High consistency, suspension difference < 70MM,the international standard is 120MM.

We use Mitsubishi electric control braiding machine to get high accuracy data collection, real-time braiding angle monitoring and correction.



SAE100 R2 productionLaboratory:

Our factory has strong quality control team and we set up advanced laboratory.

Before the mass production, we test each batch of raw material.

After the production, we test each hose to guarantee a 100% qualification.

Each hose is tested 2 times on working pressure.

We do everything that possible to supply good quality goods for our customer.

rubber-hose-laboratory

After finishing the Hydraulic Hose production, we will pack the hose. In general, the package could be woven bag and plastic film. Special package is available according to customers’ requirements.
