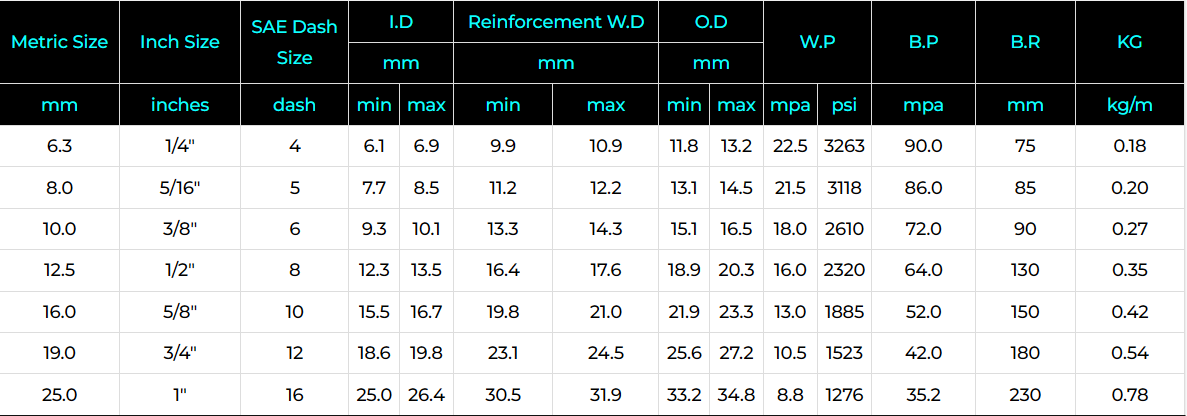

COMPACT, ONE LAYER STEEL WIRE REINFORCED HYDRAULIC HOSE EN857 1SC

INNER TUBE: oil resistant nitrile rubber
REINFORCEMENT: one layer of high tensile steel wire braid
COVER: oil and weather resistant synthetic rubber
APPLICATION: petroleum and water based hydraulic fluids
SURFACE: wrapped surface or smooth surface
EN 857 1SC TEMPERATURE RANGE: -40℃ (-104 ℉) to +100℃(+212 ℉)
